Product Description

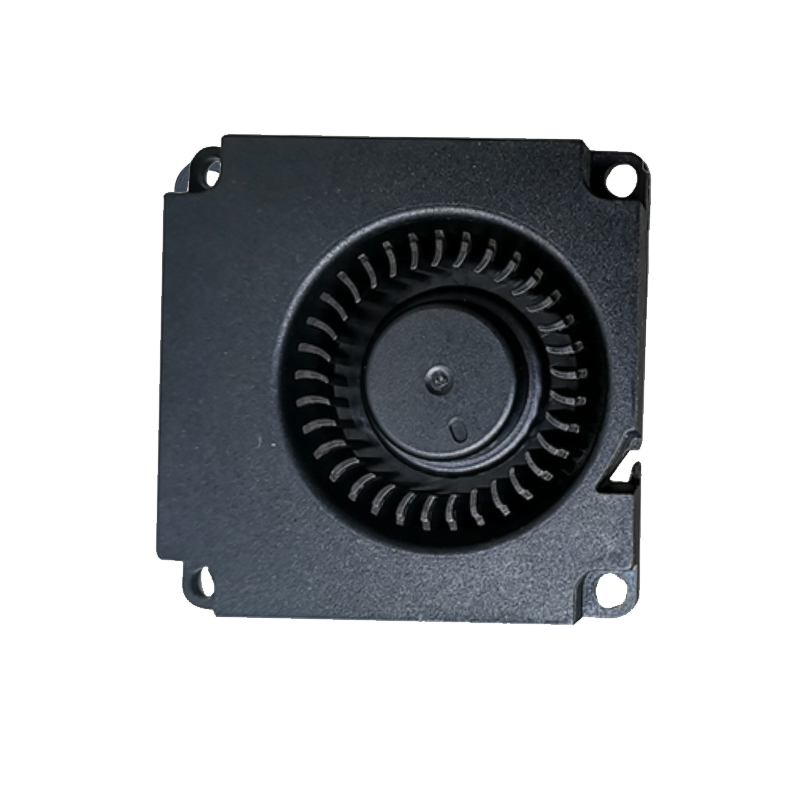

LDDC5010 Blower It is a 50×50×10mm ultra-thin DC blower / axial fan, featuring a small size, high static pressure, and low noise, primarily designed for forced cooling of micro devices. The following explains its specifications, uses, design highlights, popular models from leading brands, and applications.

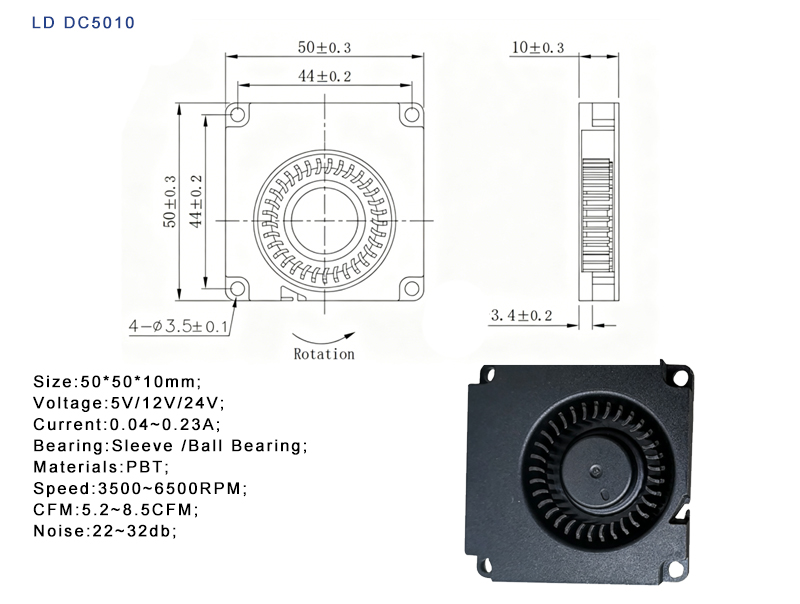

DC5010Blower Parameter Customization
Size:50*50*10mm;
Voltage:5V/12V/24V;
Current:0.04~0.23A;
Bearing:Sleeve /Ball Bearing;
Materials:PBT;
Speed:3500~6500RPM;
CFM:5.2~8.5CFM;
Noise:22~32db;
LDDC5010 accepts the following customizations ：
Fan Frame and Blade Material
Fan Label
Fan wiring harness, cable length, terminals
Speed/Airflow
LDDC5010Blower Design Parameters
Motor Protection: RP/SS/AS/CL
Signal Output:FG/RD/LD
Speed Contorl Method：PWM/TP/VC/RC/CS
LDDC5010 Blower Design Application Product Types:
