Product Description

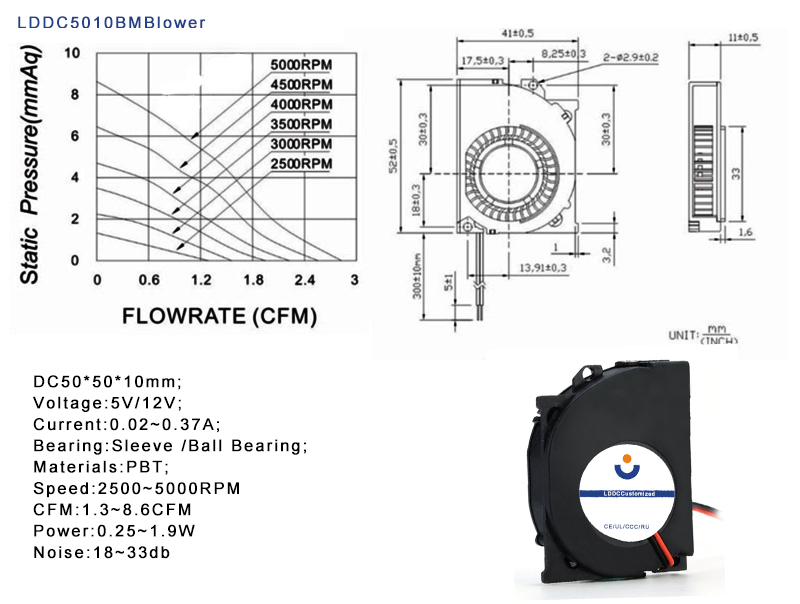

LD DC5010 Wide-Mouth Micro Ball Bearing Turbine Blower is an ultra-thin, micro-sized, side-outflow centrifugal blower, featuring an extremely slim profile, small size, and medium air pressure, specifically designed for compact and space-constrained micro/portable devices
DC50*50*10mm;
Voltage:5V/12V;
Current:0.02~0.37A;
Bearing:Sleeve /Ball Bearing;
Materials:PBT;
Speed:2500~5000RPM
CFM:1.3~8.6CFM
Power:0.25~1.9W
Noise:18~33db
50*50*10Blower Design Parameters
Motor Protection: RP/SS/AS/CL
Signal Output:FG/RD/LD
Speed Contorl Method：PWM/TP/VC/RC/CS
LDDC5010 Blower Design Application Product Types:
