The core design of the LD Customized DC7525 Blower is a medium-sized, high-volume, medium-to-high pressure side-out blower, suitable for medium to large equipment that requires strong pressure and stable airflow, commonly used in industrial equipment and high-power household appliances.

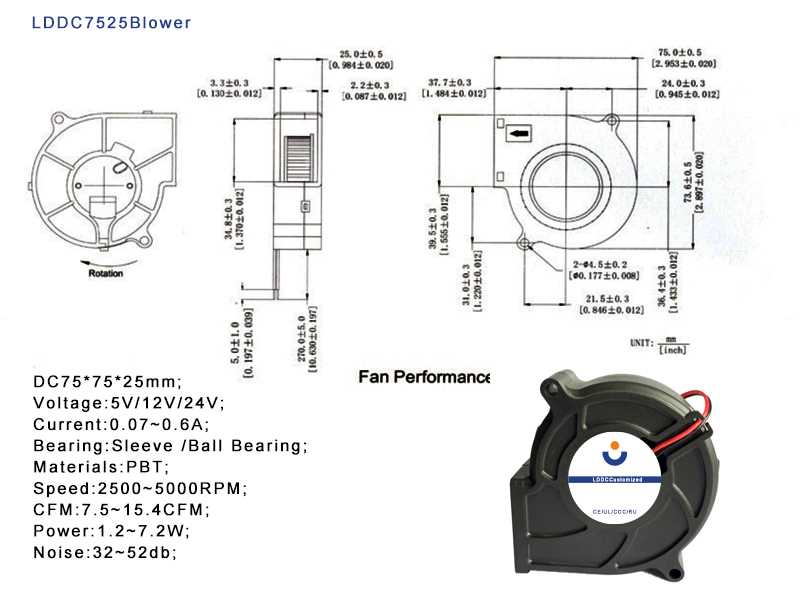

DC75*75*25mm;

Voltage:5V/12V/24V;

Current:0.07~0.6A;

Bearing:Sleeve /Ball Bearing;

Materials:PBT;

Speed:2500~5000RPM;

CFM:7.5~15.4CFM;

Power:1.2~7.2W;

Noise:32~52db;

Blower Design Parameters

Motor Protection: RP/SS/AS/CL

Signal Output:FG/RD/LD

Speed Contorl Method：PWM/TP/VC/RC/CS

LDDC7525 Blower Design Application Product Types:

LDDC7525Blower Main uses:

Industrial Power Supplies, UPS, High-Power Inverters, Charging Stations (High-Voltage Cooling)

Servers, industrial control computers, network switches, communication equipment

Laser equipment, projectors, large 3D printers

Commercial Air Purifiers, Fresh Air Systems, Dehumidifiers, Aromatherapy Machines

Medical instruments, testing equipment, beauty devices

Smart toilet, coffee machine, car air conditioner, automotive electronics

Induction cooker, high-power amplifier, stage lighting equipment
