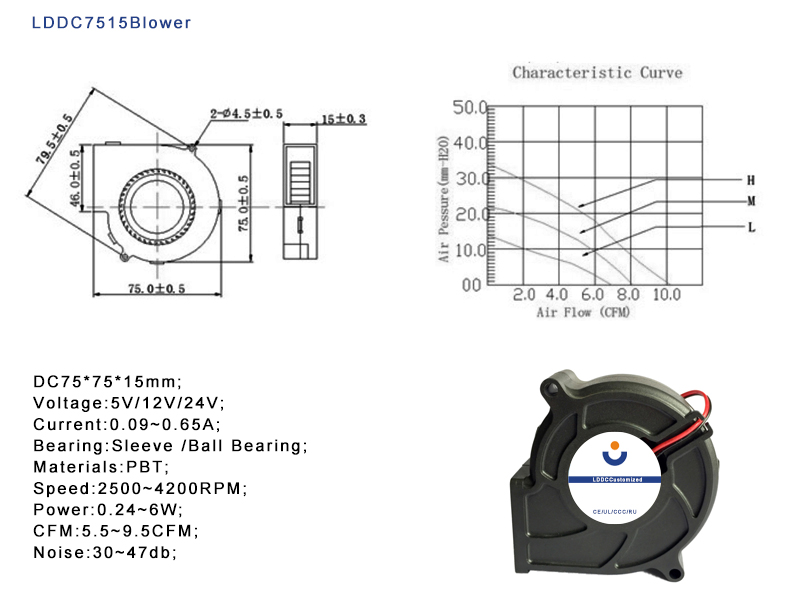

The key points of the LDDC7515 wide-mouth blower design are: an ultra-thin centrifugal fan, focusing on a slim profile, side air outlet, and medium air pressure, suitable for equipment with limited height and compact air ducts.

DC75*75*15mm;

Voltage:5V/12V/24V;

Current:0.09~0.65A;

Bearing:Sleeve /Ball Bearing;

Materials:PBT;

Speed:2500~4200RPM;

Power:0.24~6W;

CFM:5.5~9.5CFM;

Noise:30~47db;

75*75*15Blower Design Parameters

Motor Protection: RP/SS/AS/CL

Signal Output:FG/RD/LD

Speed Contorl Method：PWM/TP/VC/RC/CS

LDDC7515 Blower Design Application Product Types:

LDDC7515 Wide-Mouth Blower Main Application Equipment:

Ultra-thin Projector, Laser TV, Portable Projector

Thin Industrial PCs, Mini PCs, Thin Clients, Edge Computing Gateways

Car navigation, car infotainment system, car electronic cooling

Ultra-thin power supply, adapter, small UPS, fast charging station

Medical Beauty Device, Portable Testing Device, Nebulizer

Aromatherapy Diffuser, Small Fresh Air Purifier, Dehumidifier

3D printers, smart toilets, coffee machines

LED display screens, stage lighting, amplifier equipment
