LD DC6028 Dual Ball Bearing Turbocharger Blower is a DC blower designed for industrial equipment. It is a medium-sized, high-pressure, high-volume centrifugal blower. Compared to the 6015/6025 models, it has greater thickness, significantly improved pressure and airflow, and is specifically designed for equipment with high heat generation and high duct resistance

DC60*60*28mm;

Voltage:12V/24V;

Current:0.1~0.38A;

Bearing:Sleeve /Ball Bearing;

Materials:PBT;

Speed:3000~4000RPM

Power:2.1~4.8W

CFM:9.8~13CFM

Noise:36~42db

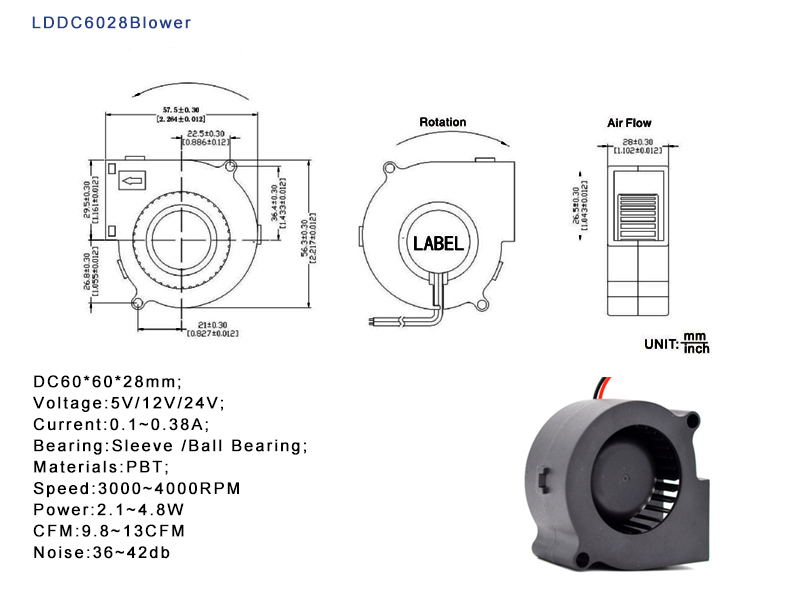

60*60*28Blower Design Parameters

Motor Protection: RP/SS/AS/CL

Signal Output:FG/RD/LD

Speed Contorl Method：PWM/TP/VC/RC/CS

LDDC6028 Blower Design Application Product Types:

Typical Application Products

Projector / Laser TV (main cooling, high air pressure to penetrate optical components)

High-performance mini PCs, industrial control computers, servers, network switches

3D Printer (Heated Bed / Nozzle Strong Cooling)

Automotive Electronics, Charging Stations, LED Displays, Stage Lighting

Medical devices, beauty devices, nebulizers, air purifiers

Humidifier, Aromatherapy Diffuser, Fresh Air System, Dehumidifier

Industrial power supplies, UPS, inverters, testing equipment

Coffee machine, smart toilet, car air conditioner
