Product Description
LD DC60*60*25mm The core design of the LD DC6025 turbocharged centrifugal blower is: high air pressure, side air outlet, low noise, long lifespan, and compatibility with high-resistance air ducts.
DC60*60*25mm;
Voltage:5V/12V/24V;
Current:0.06~0.38A;
Bearing:Sleeve /Ball Bearing;
Materials:PBT;
Speed:3000~5500RPM;
CFM：6.5~11.9CFM；
Power:0.96~4.6W;
Noise:31~48db;

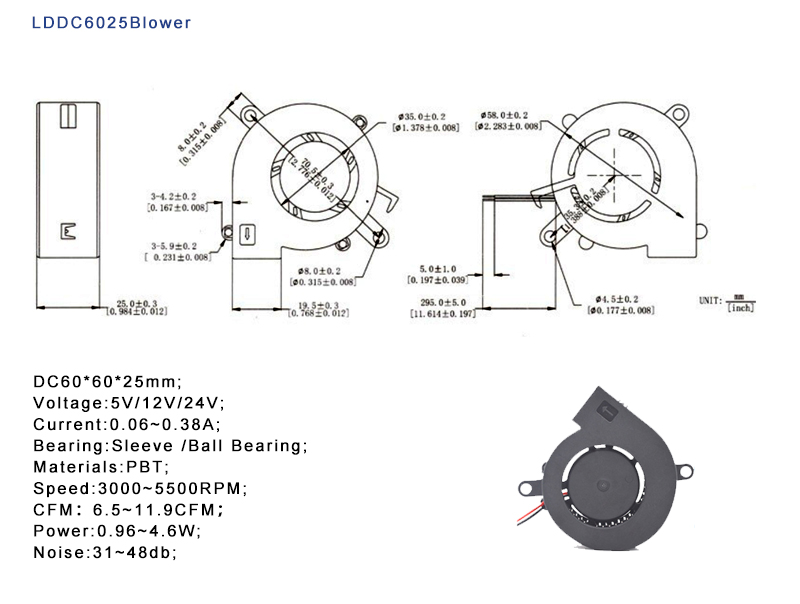

DC60*60*25Blower Design Parameters
Motor Protection: RP/SS/AS/CL
Signal Output:FG/RD/LD
Speed Contorl Method：PWM/TP/VC/RC/CS
LDDC6025 Blower Design Application Product Types:
Widely used in:
Air Purifier / Humidifier / Aromatherapy Diffuser (Air Duct Pressurization, Air Circulation)
Projector / Printer (bulb / core cooling)
Industrial Power Supply / Inverter / UPS / Charging Station (Enclosed Module Heat Dissipation)
Industrial Control Computers / Embedded Systems / Servers (Chassis Airflow, Chip Cooling)
Medical Beauty Equipment (Small Instrument Heat Dissipation, Airflow Delivery)
3D Printer (Hot End Air Duct, Filament Cooling)
In-car / Smart Home (Smart Toilet, Water Dispenser, In-car Air Conditioner)
