LD Customized DC9238 12V/24V/48V, Fan is one of the most commonly used cooling fans in the industrial and commercial fields. Its design size is 92 * 92 * 38mm, belonging to a large-sized booster fan, suitable for high impedance air ducts, equipped with PWM speed regulation, FG speed monitoring, RD fault alarm, to achieve intelligent operation and maintenance.

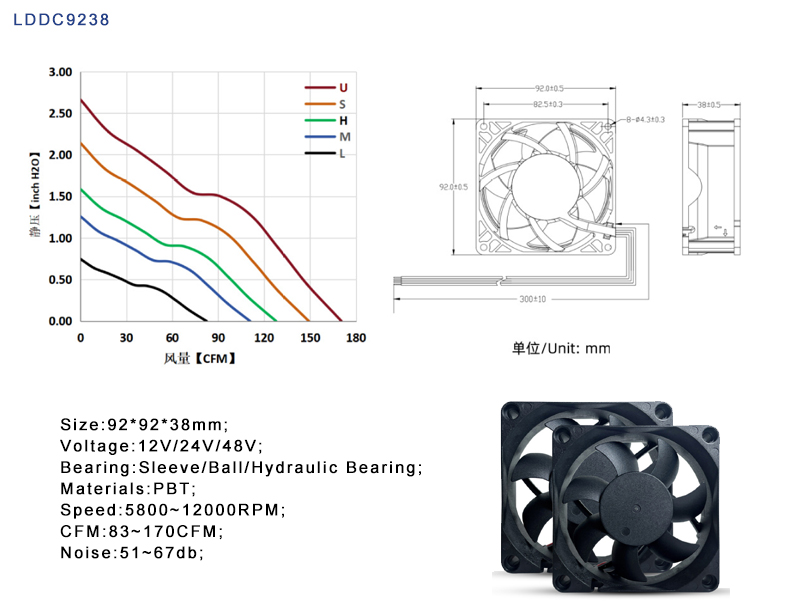

DC9238 Parameter Customization

Size:92*92*38mm;

Voltage:12V/24V/48V;

Bearing:Sleeve/Ball/Hydraulic Bearing;

Materials:PBT;

Speed:5800~12000RPM;

CFM:83~170CFM;

Noise:51~67db;

LDDC9238  accepts the following customizations ：

Fan Frame and Blade Material

Fan Label

Fan wiring harness, cable length, terminals

Speed/Airflow

LDDC9238 Design Parameters

Motor Protection: RP/SS/AS/CL

Signal Output:FG/RD/LD

Speed Contorl Method：PWM/TP/VC/RC/CS

LDDC9238 Design Application Product Types:

Communication equipment: base station, server cabinet, network switch, router

Industrial control: PLC, frequency converter, industrial power supply UPS、 inverter

New energy: charging stations, energy storage systems, photovoltaic inverters

Medical equipment: CT machine MRI、 Ventilator, medical power supply

Consumer electronics: game consoles, desktop workstations, graphics card heat sinks

Other: LED display screen, welding machine, industrial control cabinet, 3D printer
