Product Description
LDDC9025 FAN The design has a wide range of applications, primarily used in industry and home appliances.

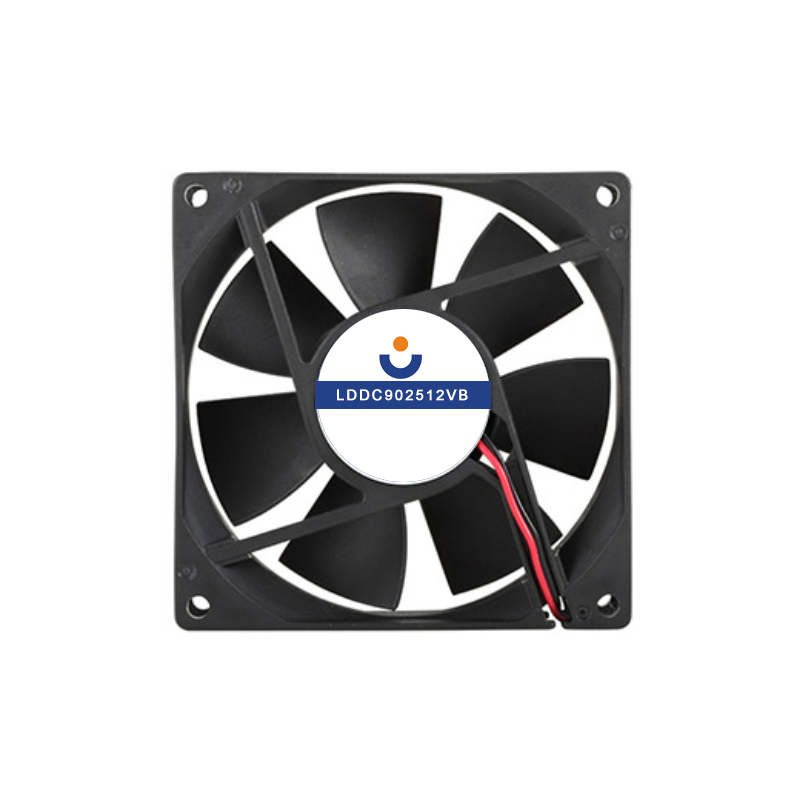

LDDC9025 Custom 9025 DC Fan
Size:90*90*25mm;
Voltage:12V/24V/48V;
Bearing:Ball Bearing/Sleeve Bearing/Hydraulic Bearing;
Materials:PBT;
Speed:2000~4000RPM;
CFM:39~77CFM;
Noise:40~47db;
LDDC9025 accepts the following customizations ：
Fan Frame and Blade Material
Fan Label
Fan wiring harness, cable length, terminals
Speed/Airflow
LDDC9025 Design Parameters
Motor Protection: RP/SS/AS/CL
Signal Output:FG/RD/LD
Speed Contorl Method：PWM/TP/VC/RC/CS
The DC9025 fan, due to its moderate size and balanced performance, is widely used in the following areas:
1. Computer and Server Equipment
PC Case, CPU Cooler, Graphics Card
Servers, data center equipment, storage systems
UPS power supply, industrial control host
2. Communication and Network Equipment
5G base stations, switches, routers
Optical Modem, Set-Top Box, Satellite Communication Equipment
3. Industrial and Electrical Equipment
Inverter, Frequency Converter, Servo Drive
Industrial Power Supply, Communication Power Supply, Energy Storage System
PLC control system, automation equipment control cabinet
Welding machines, packaging and printing equipment, CNC machine tools
4. New Energy and Automotive Electronics
Energy Storage Pack Battery Group, PCS (Power Conversion System)
Charging Station (especially fast charging stations) Cooling System
Car-mounted fresh air systems, air purifiers, car electronic devices
5. Medical and Instrument Equipment
Medical imaging equipment, ventilators, laboratory instruments
Laser equipment, analytical instruments, testing equipment
6. Consumer Electronics and Home Appliances
Stage lighting, projector, game console
Air purifier, humidifier, dryer
Refrigerator, microwave, air conditioner indoor and outdoor units

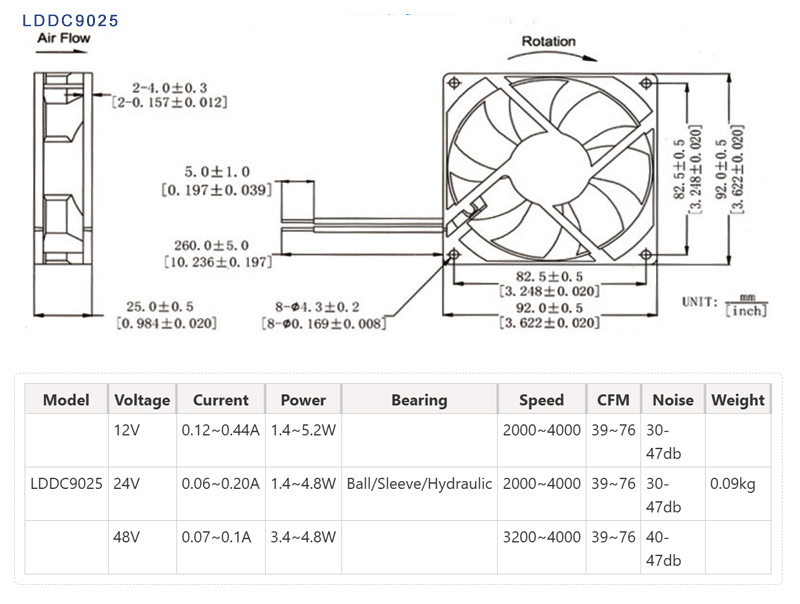

LDDC9025 Design Parameters
How to Choose Different Bearings for Cooling Fans:
Sleeve Bearings: These are sleeve bearings that use sliding friction and rely on lubricating oil as a lubricant and friction reducer. Low operating noise and low cost during initial use. The lifespan of ordinary oil-impregnated bearings is typically between 5,000 and 6,000 hours.
Hydraulic Bearing: The hydraulic bearing is an improvement on the oil-impregnated bearing, featuring a larger oil storage space and a unique loop-back oil supply circuit. This type of bearing inherits the advantages of oil-impregnated bearings and has a longer lifespan than oil-impregnated bearings, with an average lifespan of up to 40,000 hours.
Ball bearings: They change the way bearings operate by using rolling friction, which more effectively reduces friction between the bearing surfaces and significantly extends the lifespan of fan bearings. Ball bearings are divided into single ball bearings and double ball bearings:
Single Ball Bearing : Combines sliding friction and rolling friction, with a service life of up to 40,000 hours, but the operating noise will increase.
Double Ball Bearings: These are relatively high-quality bearings with an extremely long lifespan, approximately 50,000-100,000 hours. They are suitable for fans with higher rotational speeds, but the manufacturing cost is high and they tend to produce more noise.
How to Apply for Free Fan Samples?
- For our SVIP customers: All standard in-stock fan models: eligible for 5 free samples per year. Selected parameter-customized products: eligible for 1 free sample per year. Made-to-order products: not eligible for free samples.
- For our VIP customers: All standard in-stock fan models: eligible for 2 free samples per year. Selected parameter-customized products: eligible for 1 free sample per year. Made-to-order products: not eligible for free samples.
- For first-time buyers of our fans: All standard in-stock fan models: eligible for 1 free sample (one-time). Selected parameter-customized products: eligible for 1 free sample (one-time). Made-to-order products: not eligible for free samples.
Shipping Terms for Free Fan Samples
- If you request a sample with a formal order: Samples < 1 kg: free shipping. Samples > 1 kg: eligible for discounted shipping.
- For VIP/SVIP customers with a delivery address in China: Samples < 1 kg: enjoy 3 free shipping opportunities per year. Samples > 1 kg: eligible for discounted shipping.
- For overseas delivery addresses: Shipping cost is charged based on actual freight. To avoid damage, loss or other transit problems, we do not accept pickup by FedEx, UPS or DHL.
