Product Description
LD DC5020 Blower Turbine Centrifugal Blower Cooling Fan.Compact design, large airflow, low noise. Perfectly suitable for use in beauty devices, humidifiers, and other small household appliances, and is also widely used in 3C electronic equipment.
DC5020 Blower Parameter Customization

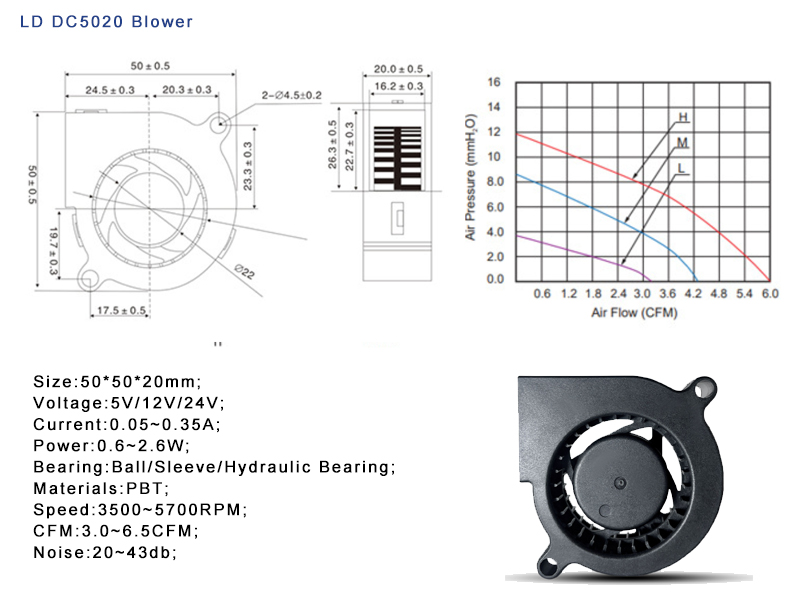

Size:50*50*20mm;
Voltage:5V/12V/24V;
Current:0.05~0.35A;
Power:0.6~2.6W;
Bearing:Ball/Sleeve/Hydraulic Bearing;
Materials:PBT;
Speed:3500~5700RPM;
CFM:3.0~6.5CFM;
Noise:20~43db;
LDDC5020 Blower accepts the following customizations ：
Fan Frame and Blade Material
Fan Label
Fan wiring harness, cable length, terminals
Speed/Airflow
LDDC50Blower Design Parameters
Motor Protection: RP/SS/AS/CL
Signal Output:FG/RD/LD
Speed Contorl Method：PWM/TP/VC/RC/CS
