The key features of the LD DC4010 Blower design are: it is a miniature high-pressure, small-sized, side-outlet DC fan, primarily designed for targeted strong airflow cooling/ventilation in confined spaces, distinguishing it from ordinary 4010 axial fans.

DC40*40*10mm;

Voltage:5V/12V/24V;

Current:0.04~0.23A;

Bearing:Sleeve /Ball Bearing;

Materials:PBT;

Speed:5000~8000RPM;

Power:0.65~1.56W;

CFM:5.6~8.0CFM;

Noise:25~37db;

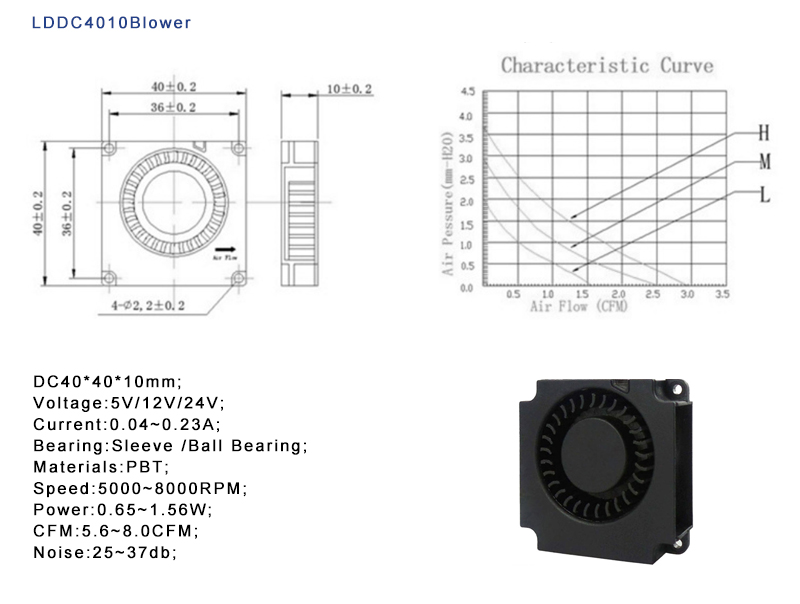

40*40*10Blower Design Parameters

Motor Protection: RP/SS/AS/CL

Signal Output:FG/RD/LD

Speed Contorl Method：PWM/TP/VC/RC/CS

LDDC4010 Blower Design Application Product Types:

DC4010 Blower: Typical Application Product

3D Printer (Nozzle / Model Cooling, Most Common)

Projectors, Laser Equipment, Portable Projectors (Closed Cavity High Air Pressure Cooling)

Medical equipment: Nebulizers, ventilators, CPAP machines, handheld detectors

Industrial Power Supply, UPS, Fast Charging / Charging Stations, Server Small Modules

Automotive Electronics: Car LED Headlights, Car Air Purifiers, HUD, Navigation Head Unit

Consumer Electronics: VR/AR Headsets, Hair Removal Devices, Aromatherapy Machines, Nail Care Devices, Smart Toilets

Industrial Control / Communication: Optical Modules, Switches, Embedded Motherboards, Security Cameras

Home Appliances: Air Purifier, Humidifier, Induction Cooker, Blender with Localized Heat Dissipation
