Product Description

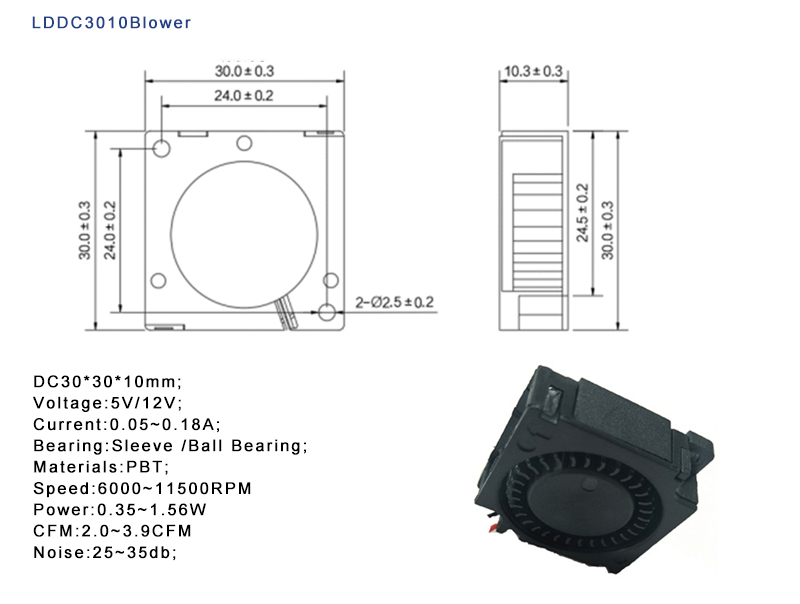

The design highlights of the LDDC3010Blower 30×30×10mm are: ultra-miniature, ultra-thin, low airflow, and low air pressure centrifugal blower (turbine blower), specifically designed for precision equipment with extremely limited space, concentrated heat generation, and the need for directional airflow
DC30*30*10mm;
Voltage:5V/12V;
Current:0.05~0.18A;
Bearing:Sleeve /Ball Bearing;
Materials:PBT;
Speed:6000~11500RPM
Power:0.35~1.56W
CFM:2.0~3.9CFM
Noise:25~35db;
30*30*10Blower Design Parameters
Motor Protection: RP/SS/AS/CL
Signal Output:FG/RD/LD
Speed Contorl Method：PWM/TP/VC/RC/CS
LDDC3010 Blower Design Application Product Types:
LDDC3010Blower Typical Application Products
Portable Projector, Mini Laser Projector, Smart Glasses
Mini PCs, NUCs, ultra-thin laptops, handheld devices, routers, set-top boxes
3D Printer (Nozzle / Hot Bed Micro Cooling), Car Air Freshener, Essential Oil Diffuser
Medical devices (handheld detectors, beauty devices), sensor modules, drones
LED car lights, automotive electronics (GPS, multimedia), industrial cameras, surveillance equipment
Micro power supply, fast charger, e-cigarette, smart door lock, walkie-talkie
