Product Description

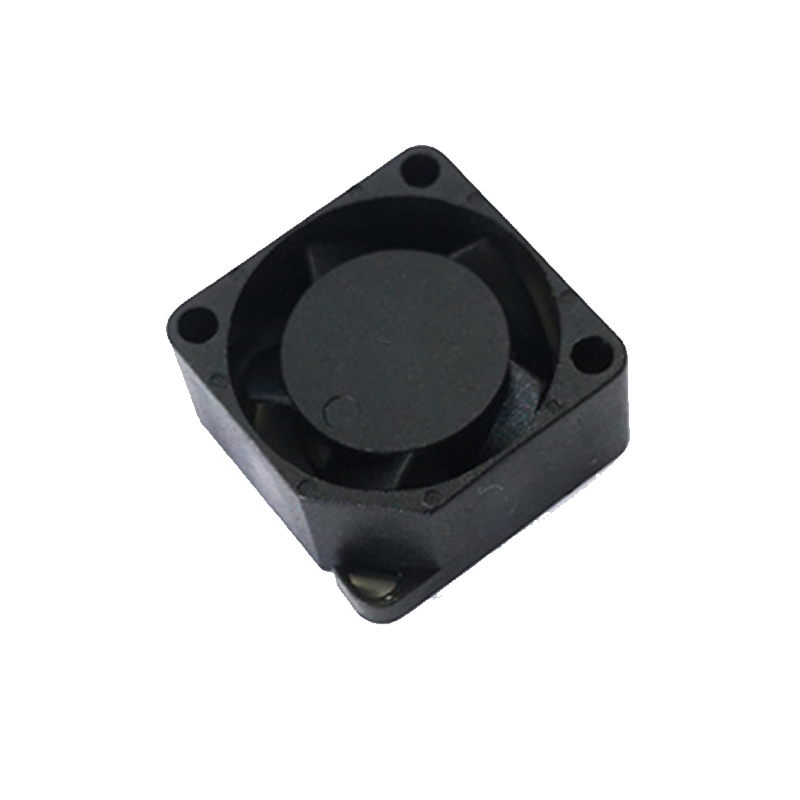

The LDDC2010 is specifically designed for space-constrained equipment. Due to its ultra-small size, it uses high-quality frames and bearings to increase rotational speed, resulting in a small size with a large airflow. It can help you better control the operating temperature of your equipment.
Size:20*20*10mm;
Voltage:5V;
Current:0.07~0.16A；
Speed:10000~14000RPM:
CFM:1.18~1.66CFM:
Power:0.35~0.8W；
Noise:21-23db;
Bearing:Sleeve/Ball Bearing;
Materials:PBT;
LDDC2010 accepts the following customizations ：
Fan Frame and Blade Material
Fan Label
Fan wiring harness, cable length, terminals
Speed/Airflow

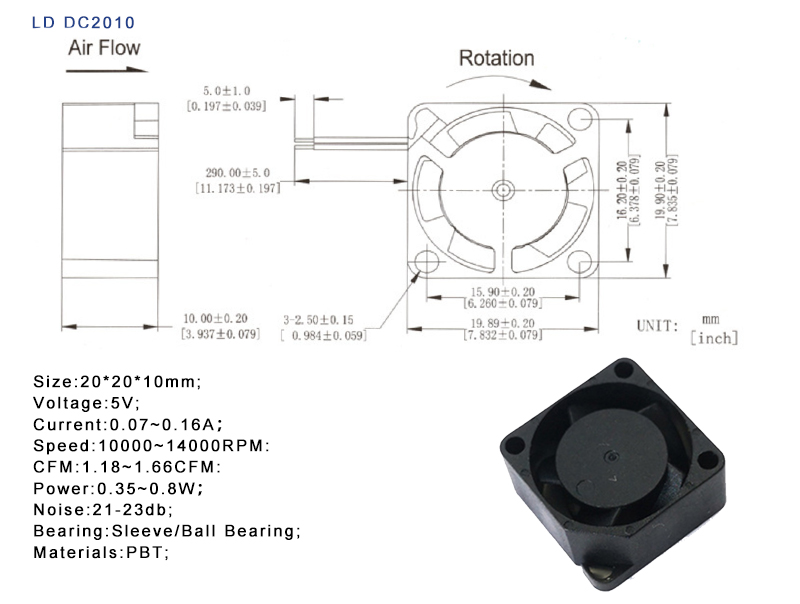

LDDC2010 Design Parameters
Motor Protection: RP/SS/AS/CL
Signal Output:FG/RD/LD
Speed Contorl Method：PWM/TP/VC/RC/CS
LDDC2010 Design Parameters
