Product Description
LD Customized EC3G108110
I. Electrical and Performance Parameters ;
Rated voltage :115V ;
Frequency : 50/60 Hz;
Input current :0.80 A (±10%) ;
Input power : 53 W (±10%);
Speed : 2960 rpm (±10%) ;
Airflow :260 m³/h (±10%) ;
Static pressure : 430 Pa ;
Noise : 64 dBA ;
Operating temperature :-25 ~ +60 ℃ ;
Speed control method : 0-10V DC / PWM speed control, with speed signal output;
Protection function : Stall protection, current limiting protection, soft start;
Protection level : IP44;
Insulation Class :Class F;
Bearing type :Ball bearing ;
Impeller material :Galvanized steel sheet ;
Rotation direction : From the lead wire, it appears to be in a counterclockwise direction.

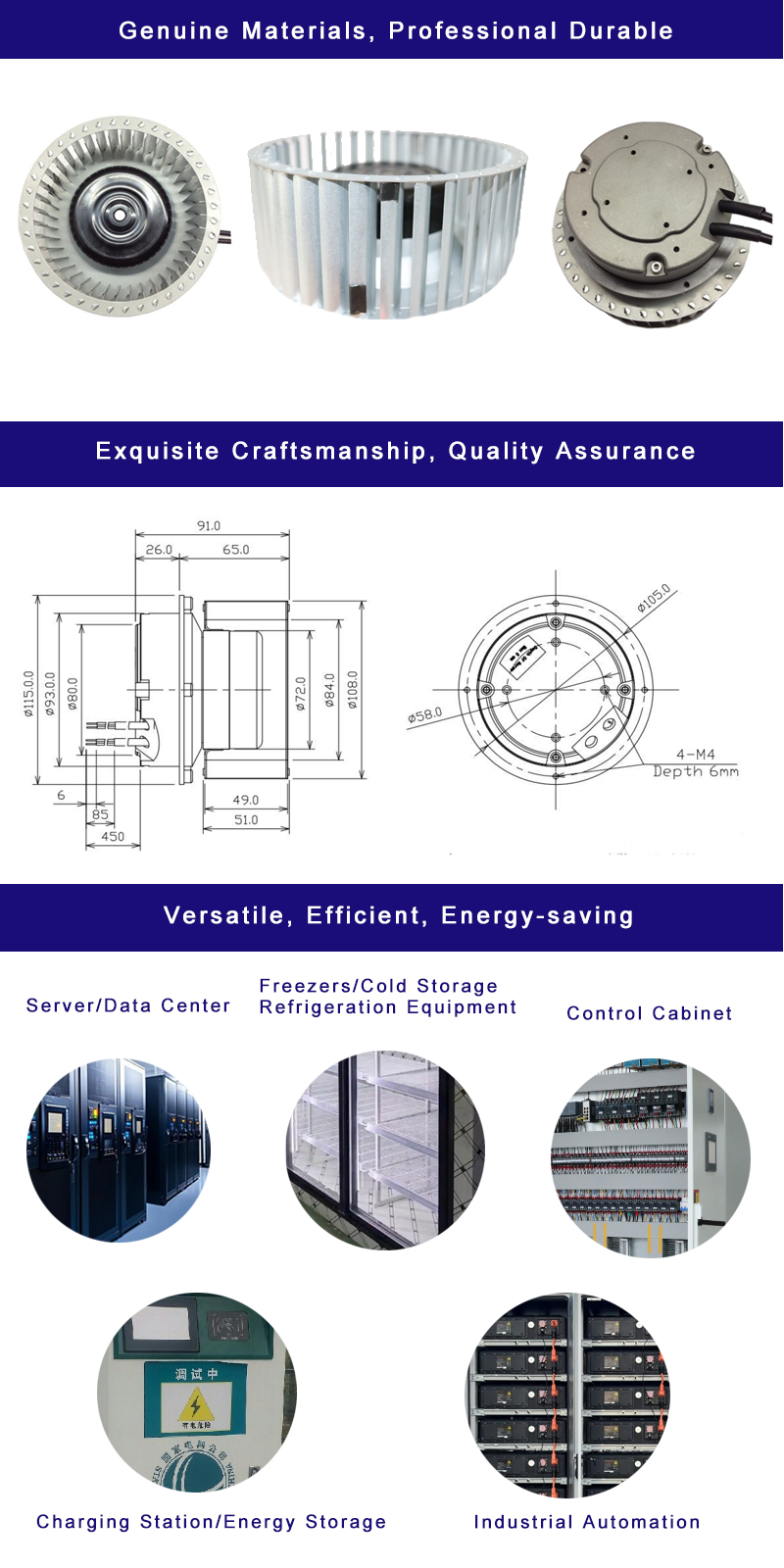

II. Mechanical Dimensions Parameters (Unit: mm)
1. Axial length (total length direction)
Total length of the fan body: 91.0
Installation flange section length: 26.0
Shell / Outlet section length: 65.0
Effective length of the air outlet section: 51.0
Effective inner length of the air outlet section: 49.0
Distance from the outlet end to the flange face: 6.0
Terminal group spacing: 8.5
Distance from the outermost end of the terminal to the flange face: 45.0
2. Radial diameter
Maximum outer diameter of the fan: Ø108.0
Outer diameter of the volute outlet: Ø84.0
Shell outlet inner diameter: Ø72.0
Motor / Flange Section Outer Diameter: Ø115.0
Motor / Flange Section Inner Hole 1: Ø93.0
Motor / Flange Section Inner Hole 2: Ø80.0
3. Installation Flange Dimensions
Flange mounting hole distribution circle diameter: Ø105.0
Flange Positioning / Inner Ring Diameter: Ø58.0
Installation screw specifications: 4-M4, depth 6mm (4 M4 screw holes, hole depth 6mm)
