The server cooling solution not only needs to solve the problem of high air volume, but also needs to consider wind pressure, lifespan, stability, noise, speed, and IP dust/water resistance.
Compared to 1U/2U, 4U servers provide larger internal space, support multiple CPU architectures, multiple PCIe expansion slots, and high-capacity storage solutions, making them suitable for high load scenarios such as high-performance computing, cloud computing, and financial transactions
Problem to be solved for the cooling fan of the 4U rack server:
High power: 300~800W;
High wind resistance: Various components cause high wind resistance and relatively narrow air ducts;
Stability: After the server is turned on, it needs to work continuously for 24 hours except for regular maintenance.

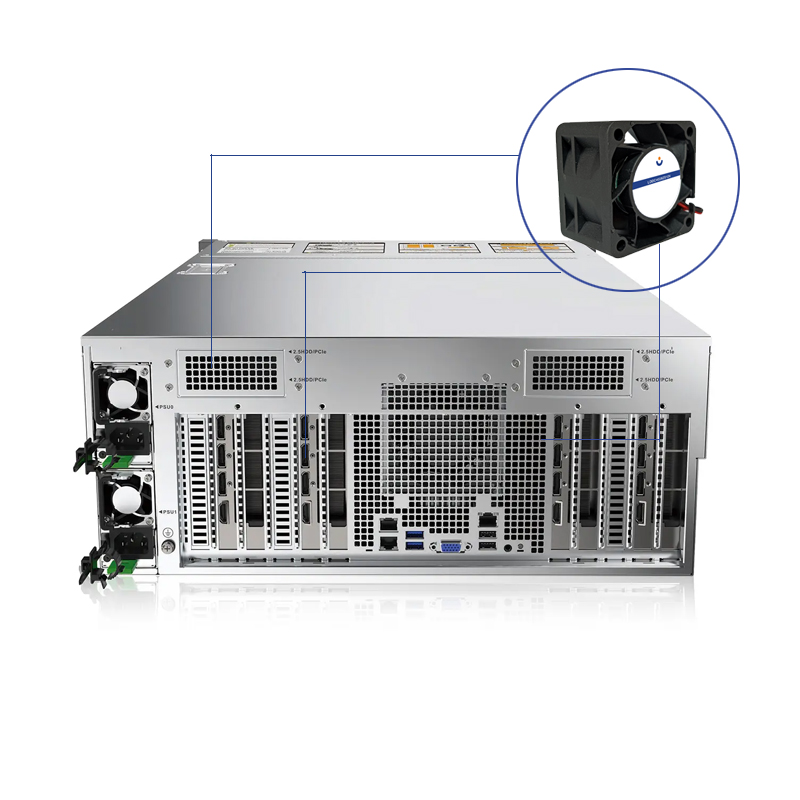

LD Industry Fan 4U Server Solution:
LDDC12038 design parameters:
Size: 120 * 120 * 38mm
Voltage: DC 12V/24V
Control: 4-wire PWM
Airflow: 110~250 CFM
Wind pressure: 2.5~4.5 mm H ₂ O
Speed: 2500~5500 RPM
Bearing: Double ball/Sleeve
MTBF：≥30000h
Working temperature: -40 ℃~75 ℃
LDDC12038 4U server cooling scheme layout suggestion:
Front end: 2-4 12038 air intakes
Rear: 1-2 12038 air outlets
Directly blow CPU, memory, hard disk backplane
Support N+1 redundancy
Key points of heat dissipation design for LDDC12038 4U server:
Mainly with high air volume, sufficient air pressure is sufficient
The noise requirements are looser than 1U/2U, and more emphasis is placed on lifespan and stability
Support hot swapping, shock-absorbing rubber pads, and speed monitoring
Recommended dustproof level: IP54
