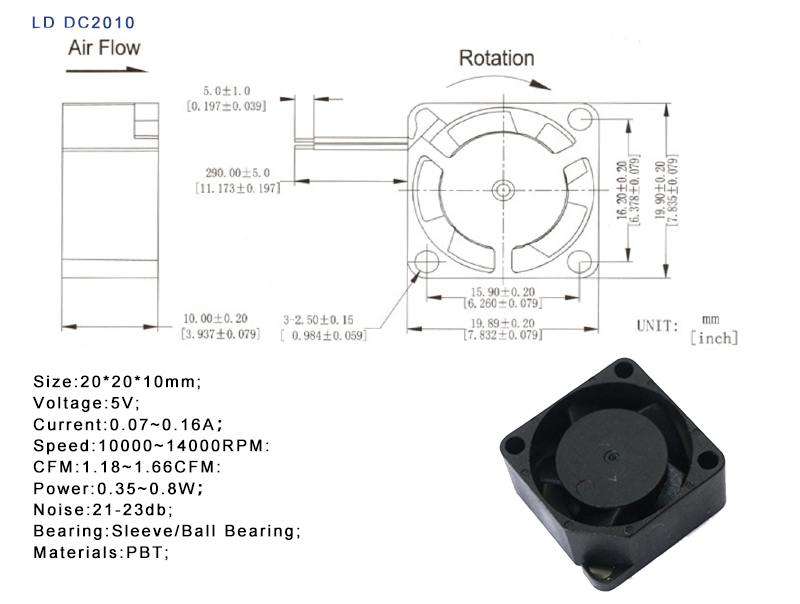

LD2010 5V Sleeve bearing Mini Silent Cooling Fan Products ,PBT,14000RPM,5V,1.66CFM,0.16A，23db,20*20*10mm. Use for Car Light , Raspberry Pi, development board, mini PC, Cooling Fan.
LDDC2010 accepts the following customizations ：
Fan Frame and Blade Material
Fan Label
Fan wiring harness, cable length, terminals
Speed/Airflow
LDDC2010 Design Parameters
Motor Protection: RP/SS/AS/CL
Signal Output:FG/RD/LD
Speed Contorl Method：PWM/TP/VC/RC/CS
Complete comparison of the two parameters：
| Model | LDDC201005S | MF20100V2-1000U-A99 |
|---|---|---|
| Price | $0.8~$2/pcs. | $6~$12/pcs. |
| Bearing | Sleeve/Ball Bearing | SUNON Bearing |
| Size | 20*20*10mm | 20*20*10mm |
| Voltage | 5V | 5V |
| Current | 0.16A | 0.2A |
| RPM | 14000RPM | 14000RPM |
| CFM | 1.66CFM | 1.5CFM |
| Noise | 23db | 20db |
| Wire | 2/3/4wire | 2wire |
LDDC201005S We can guarantee that our parameters can match MF20100V2-1000U-A99 by more than 90%.
If you wish to reduce your manufacturing costs, improve your manufacturing efficiency, and speed up your cash flow. Then you can contact us at any time to obtain samples for testing.
